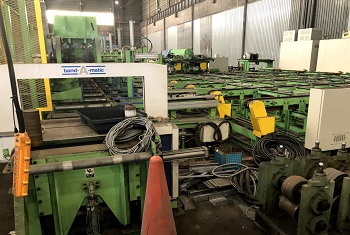

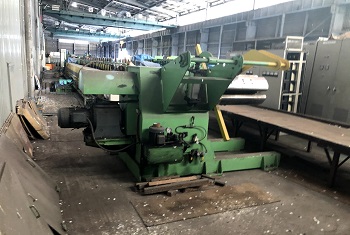

（No.M15021）BOX COLUM AND STUD ROLL FORMING MACHINE

　

General Specifications

ONE (1) USED

Maker: AIDA ENGINEEERING JAPAN
Year of made : 2007

1） Forming machine : Colum & Stud

2） Strip Width : 600mm

3） Strip Thickness : 1.0-1.6mm (SGCC 400 GI,Z27 )

4） Product size; (Stud rectangular tube) 235 X 50 X1.0~1.2 (ColumSquare Tube) 89X89X1.0,1.2,1,6mm Length 1,800~6,000mm )

5) Pass line 900mm from FL

6) Speed :30m/min MAX4 cut /min

7) Motor : 1AC55kwX2

8) Drive Chain driven

9) Roll Shaft Diameter: 70mm

10) Stand : 30 Stand

11) Machine complete se with Run cut type pilling and bundling

11) Machine Spec and size : L57,512mm XW18,000mm X H2,020mm
