（No.M15067）12FT CORRUGATING MACHINE



General Specifications

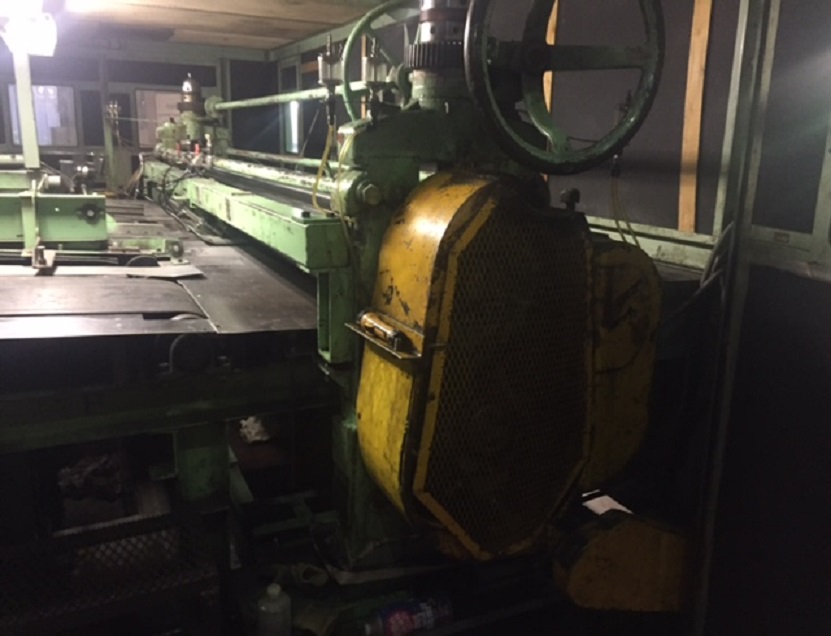

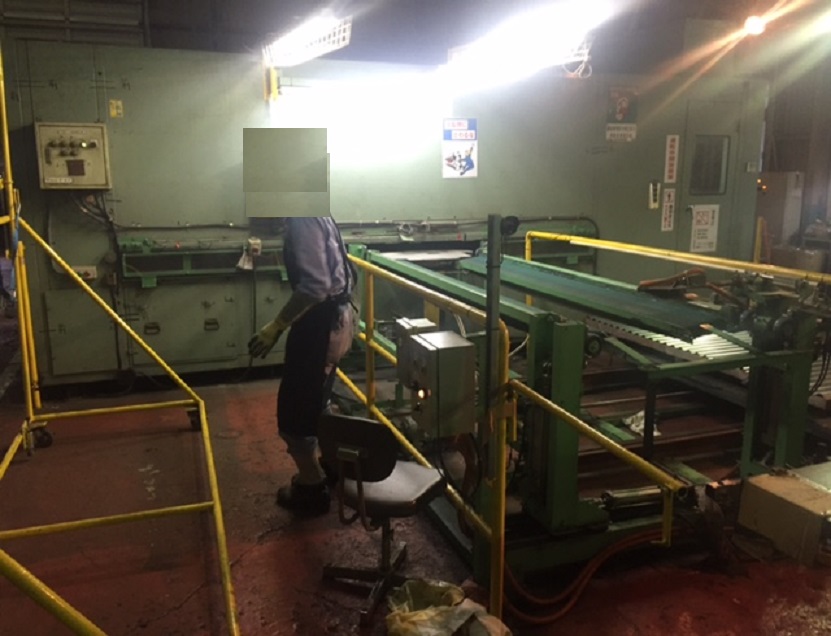

ONE (1) USED Barrel Corrugating machine NAGAOKA with AUTO FEEDER

Input Material :

GI Sheet (Full Hard Material)
Profile : Large Wave (Pitch 76.2mm , Height 18mm Width input 914mm Finish 800mm,Input 762mm Finish 665mm )
Thickness : 0.2mm-0.4mm

Machine Spec. details;
Made : Nagaoka Iron works, Japan

Drive Motor : SUMITOMO Cyclo Drive
15kW, 4p, 380vAC, 1500rpm.
Machine Overall Dimensions :
