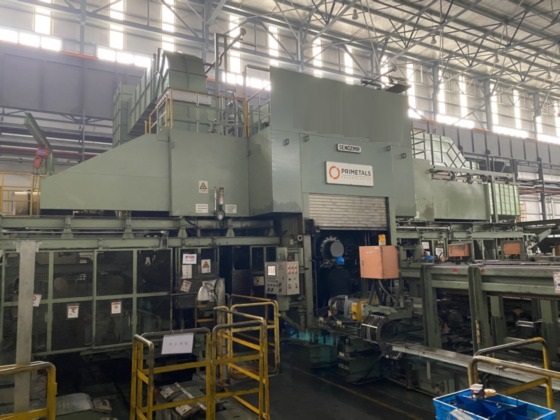

（No.M15070）PRIMETALS/MITSUBISHI HITACHI Z-HIGH REVERSING COLD ROLLING MILL


General Specifications

One used 1250mm PRIMETALS/MITSUBISHI HITACHI Z-HIGH REVERSING COLD ROLLING MILL, NEW 2015

PRODUCTION OUTPUT - 15,000 TON/M
MANUFACTURER - PRIMETALS TECHNOLOGIES/MITSUBISHI HITACHI
YEAR - 2015
TYPE - Z-HIGH (4HI/6HI - This mill can be run as 4HI and 6HI Configuration)
WIDTH RANGE - 600MM - 1250MM
THICKNESS RANGE - 11MM - 0.3MM (INPUT) 10MM - 0.2MM (OUTPUT)
COIL WEIGHT - 25 TON (27 TON W/ SLEEVES)
COIL INSIDE DIAMETER - 508MM, 610MM, 762-708MM
COIL OUTSIDE DIAMETER - 2000MM (2200 W/ SLEEVES)
MAXIMUM TR TENSIONS - 294KN @ 600 MPM
ROLL DIAMETER (6HI) - 125-135MM WR | 303-318MM IMR | 1010-1100MM BUR
ROLL DIAMETER (4HI) - 440-440MM WR | 1010-1000MM BUR
MILL COOLANT SPRAY - 4000 L/MIN 90 KW X 2
COOLANT - 40m3 COOLANT TANK + VACUUM FILTER + ELECTROMAGNETIC FILTER
MAIN MILL MOTOR - 4200 KW
REEL MOTORS - 3300 KW (2X)
PAYOFF REEL MOTOR - 550KW
MILL AUTOMATION - AGC, ASC
SHAPEMETERS - YES , KOBELCO(2)
XRAY GAUGES - YES (2)

MILL CONFIGURATION:

COIL STORAGE CRADLES

INGROUND COIL CAR

RIGHT PAYOFF REEL W/ SUPPORT

PEELER TABLE

5-ROLL LEVELER

RIGHT TENSION REEL

PAPER WINDER

FEED ROLLER

DEFECTOR ROLL

SHAPE METER

EDGE SENSOR

SPEED METER

THICKNESS GAUGE

ROLLER WIPER

SIDE GUIGE

MILL HOUSING

QUICK CHANGE ROLL CHANGEOUT CART

DELIVERY SHEAR

ROLLER WIPER

THICKNESS GAUGE

SPEED METER

SHAPE METER

FEED ROLLER

DEFLECTOR ROLL

PAPER WINDER

LEFT TENSION REEL

BELT WRAPPER

INGROUND COIL CAR

OPERATORS CONTROL ROOM PULPIT
