（No.M15076）KYOWA SLITTING LINE

　


General Specifications

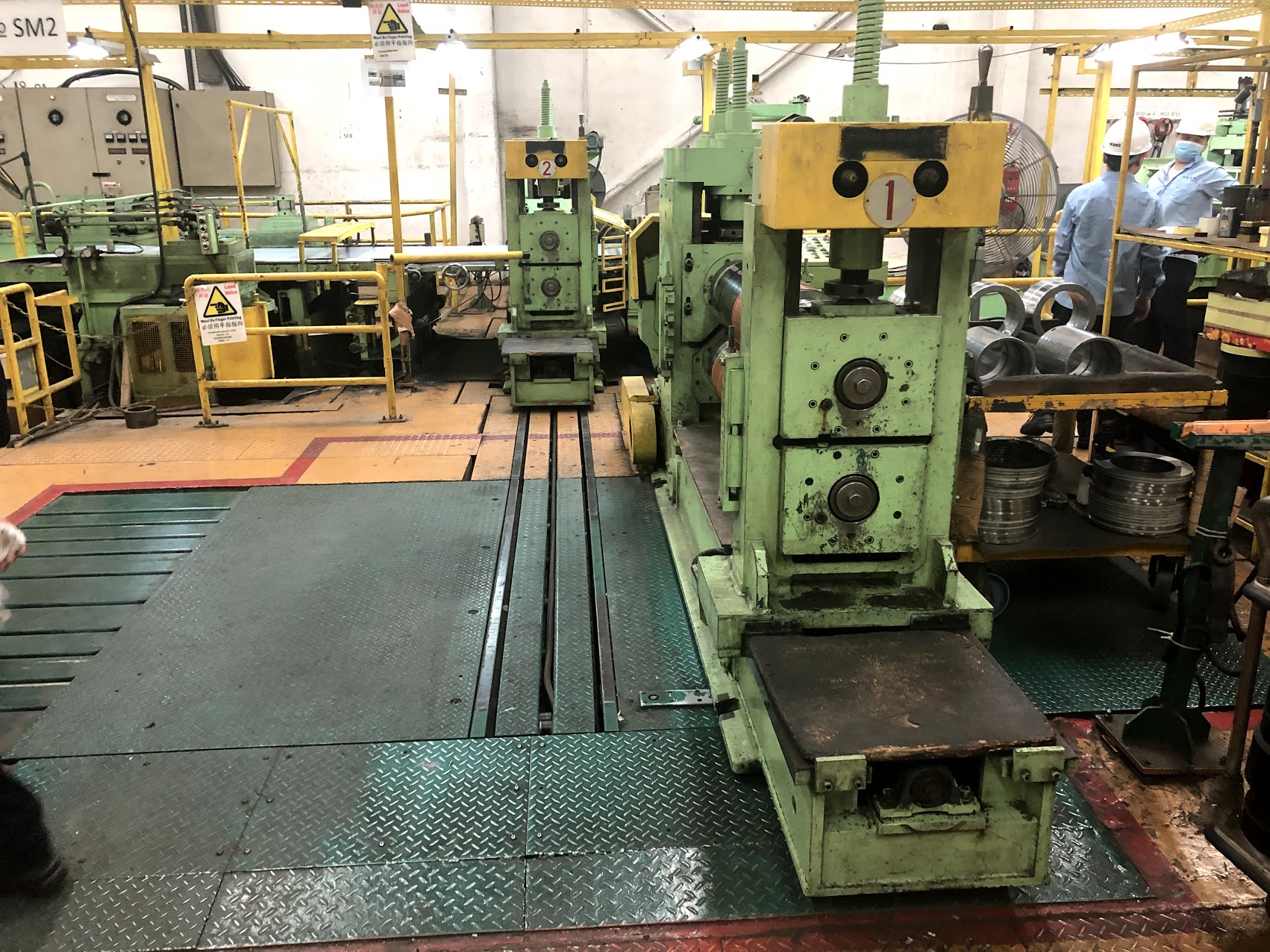

One used KYOWA MADE SLITTING LINE

Material Cold rolled steel sheet, Surface-treated steel sheet , Pickled steel sheet
(Electrical steel sheet Less than 0.6tmm)
Tensile strength Less than～42kg/㎟
Thickness 0.35tmm～2.3tmm
Strip width 400wmm～1,300wmm
Original coil dimensions Inner diameter ø508mm・ø610mm
Outer diameter ø1,600mm
Winding coil dimensions Inner diameter ø508mm
Outer diameter ø1,600mm
Winding maximum effective width 1,400mm
Coil weight Entry side10,000kg
Outgoing side10,000kg
2) Line specifications
Line format 2 Pit line
Cutting method Drive cut
Winding speed control method (constant speed operation method)
Line speed 200m/min,80m/min 2 2-step switching
Line direction Seen from the operation side
Right → Left
Unwinding and Winding direction Unwinding Up・Down
Winding direction Winding up
Shear condition 0.35tmm 22 coil 23cut(200m/min)
(Reference value) 1.6tmm 11 coil 12cut(150m/min)
2.3tmm 6 coil 7cut(80m/min)
Number of shear lines Maximum 22coil
Cutting width Minimum 25mm
