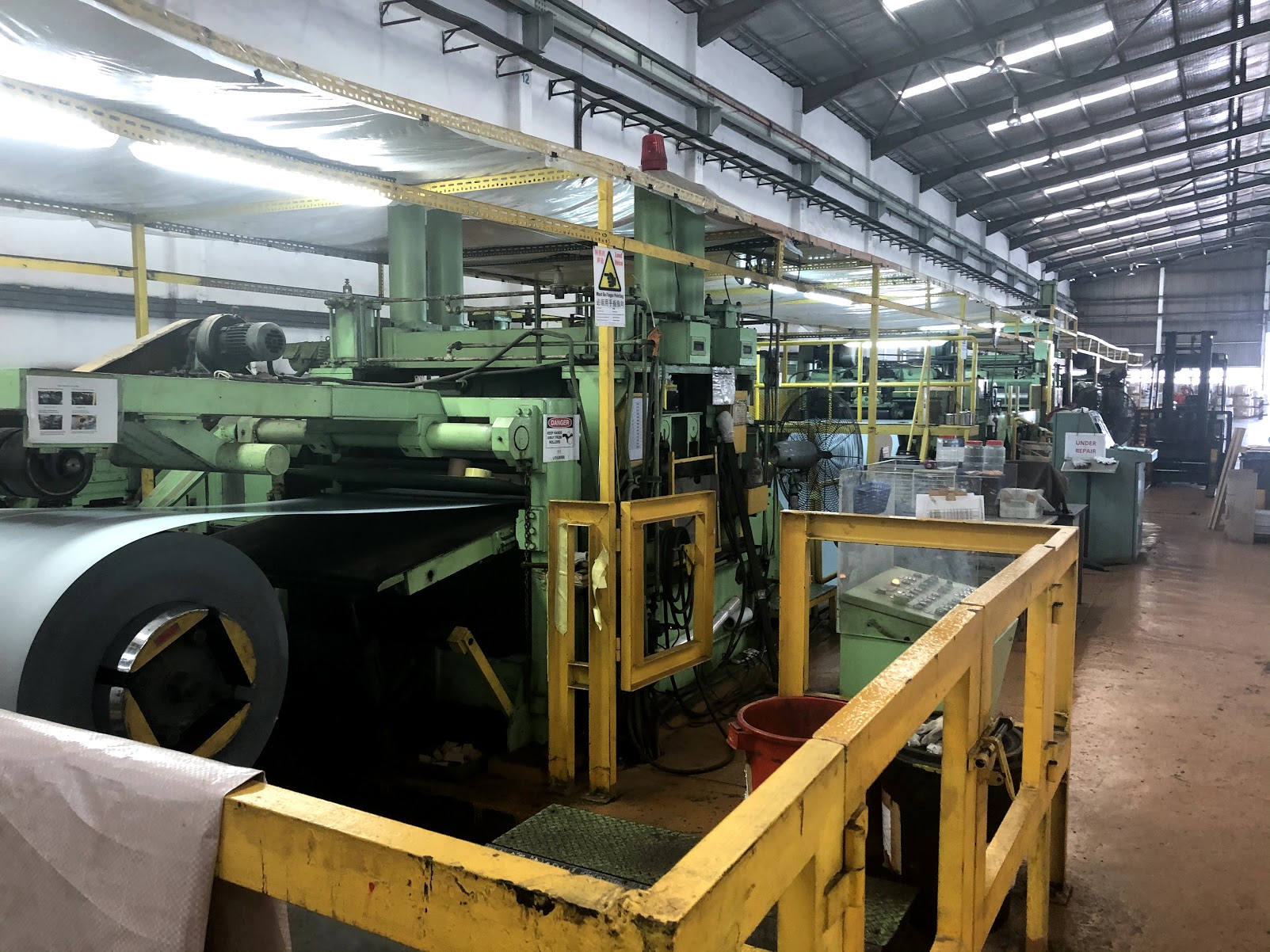

（No.M15077）KYOWA CUT TO LENGTH LINE

　


General Specifications

One used KYOWA MADE CUT LENGTH LINE

1) Cold rolled steel sheet ,Pickled steel sheet,Surface-treated steel sheet
2) Strip width 400～1300mm
3) Thickness 0.4～2.3mm
4) Tensile strength Less than　42kg/㎟
5) Yield point Less than　28kg/㎟

6)Coil specification 1) Weight 10,000kg
6-2) Outer diameter ø 650～ø1,600mm
6-3) Inner diameter ø 508mm

7) Line specifications 1) Line speed ～60m/min
8) Feed amount 80～4,000mm
9) Number of cuts Maximum 60cut
10) Control method Numerical Control(With Looper control)DDS CONTROL
11) Accuracy Target value less than ±0.3mm
Guaranteed value less than ±0.5mm
12) Piler loading capacity [Shot Piler]
Length of loading 80～500mm
Loading height 500mm (Including the Skit)
Load weight1,000kg (Including the Truck)
[Long Piler]Length of loading 500～4,000mm
Loading height 500mm (Including the Skit)
Load weight3,000kg (Including the Truck)

13)Line direction Left→Right
